SKJ2-250 400kg Mini Home Using Flat Die Livestock Feed Pellet Machine
Introduction of livestock feed pellet machine
The livestock feed pellet machine is good ideal machine for farm using or testing using, It is good at press different kind of grass, straw, ground nuts shell, corn straw and other agricultrue waste into animal feed pellets or biomass pellets, if feeding mateirals using animal waste can making fertilizer pellets.
SKJ livestock feed pellet machine using the high efficiency motor to provide the power, through the cardan connecting the motor and the gearbox, inside the gearbox with differential gears, which is same as truck rear axle gear, so easy to get spare parts locally and maintenance cost low.
Flat die livestock feed pellet machine motor directly connecting with the machine gears and shaft, also overcome the loose defect of belt connecting as long time using, and stable working.
Mainly Parameter of livestock pellet making machines
| Model | Power (kw) | Capacity for pellets(kgs/h) | Weight of the machine(kgs) | Dimension of the machine (mm) |
| SKJ2-120 | 3 | 70-100 | 50 | 1150×300×550 |
| SKJ2-150 | 7.5 | 100-300 | 150 | 1260×400×650 |
| SKJ2-200 | 11 | 300-500 | 200 | 1300×500×850 |
| SKJ2-250 | 15 | 400-700 | 500 | 1400×600×1000 |
| SKJ2-280 | 22 | 500-800 | 700 | 1860x650x1500 |
| SKJ2-300 | 30 | 600-1200 | 760 | 1860×670×1600 |

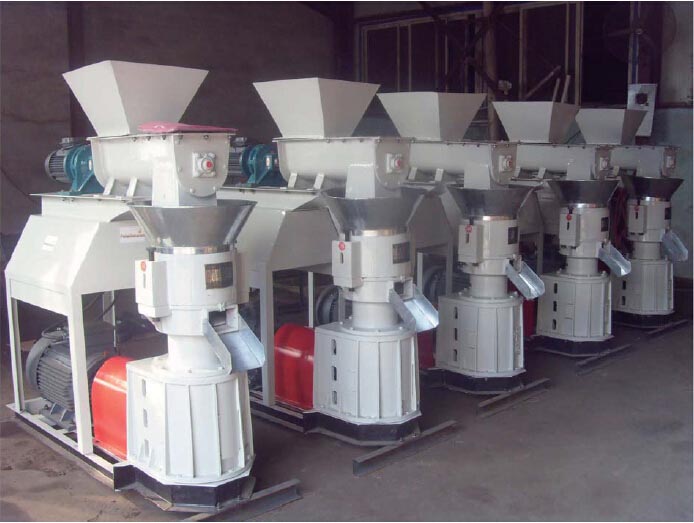

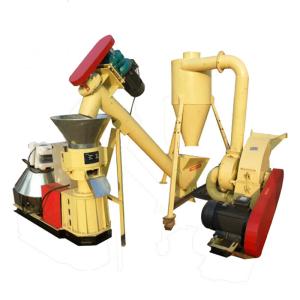

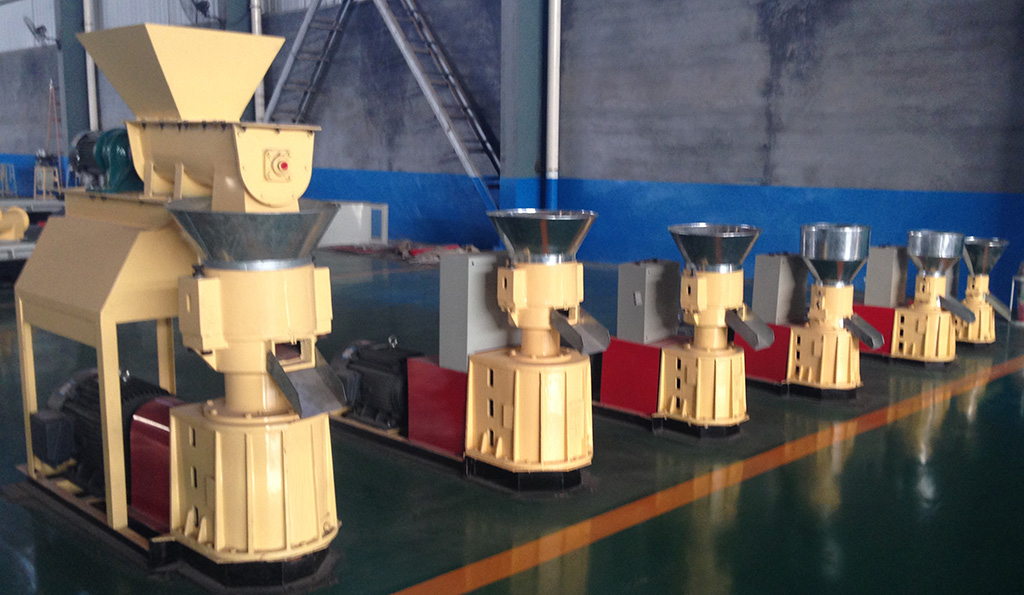

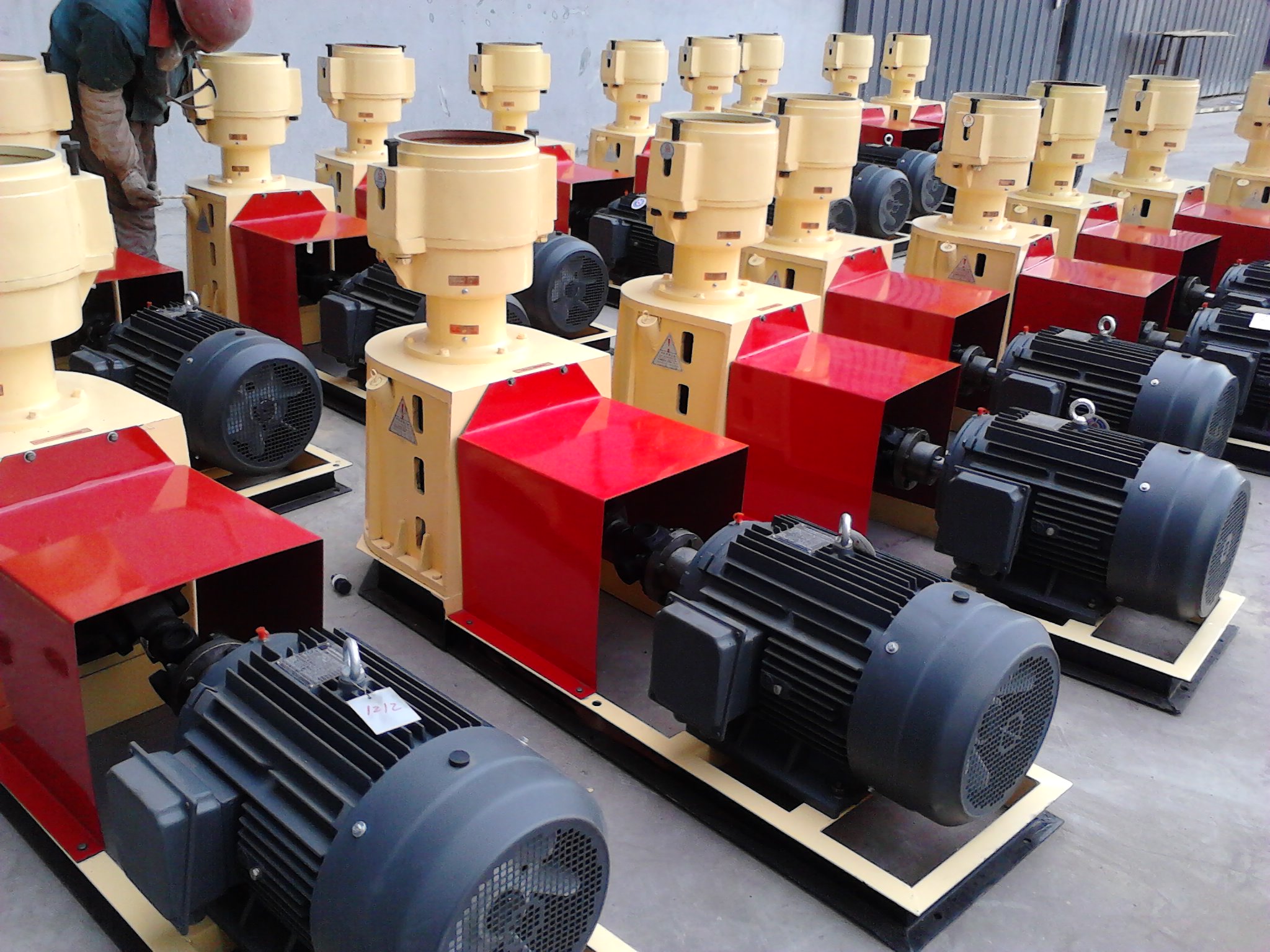

Photos of the livestock feed pellet machine:

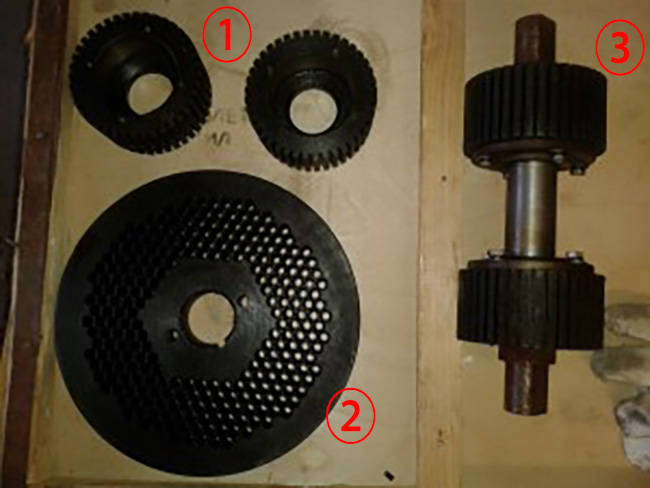

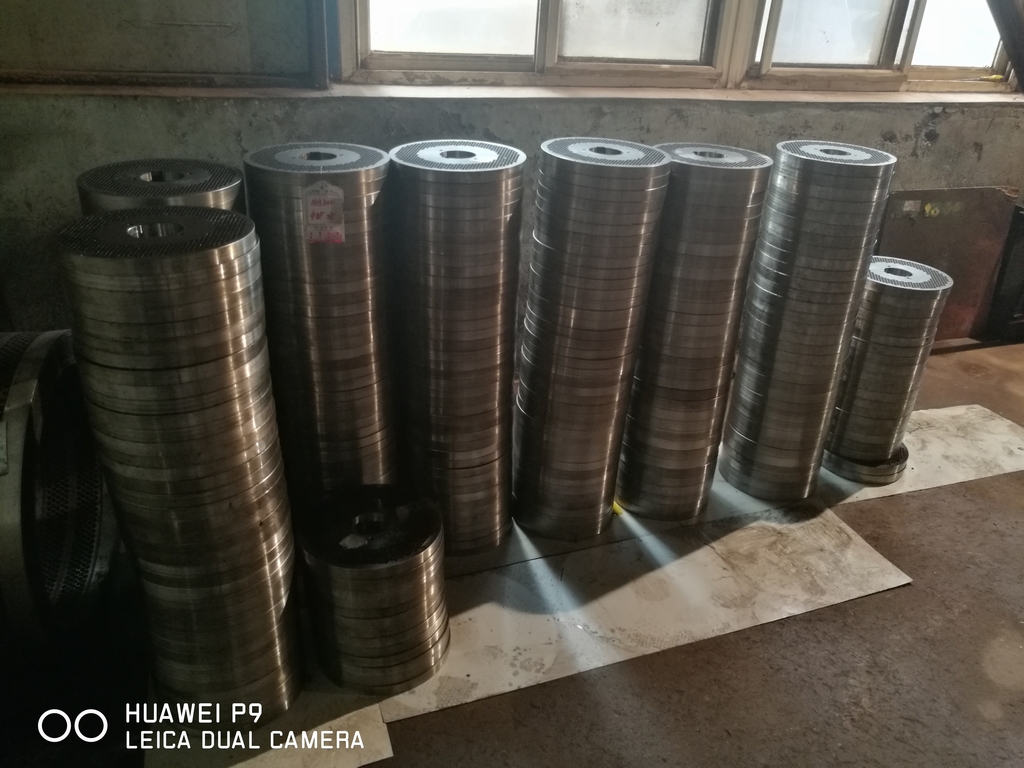

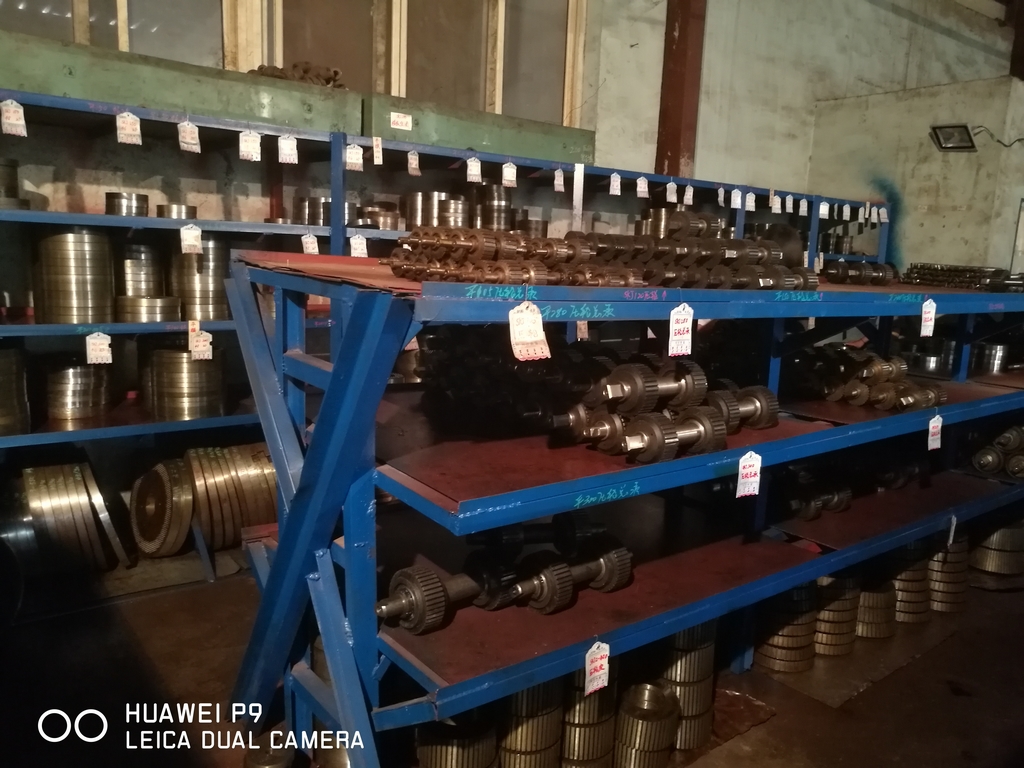

The spare parts for the livestock feed pellet machine:
① Roller cover
② Flat die
③ Roller assemblely
